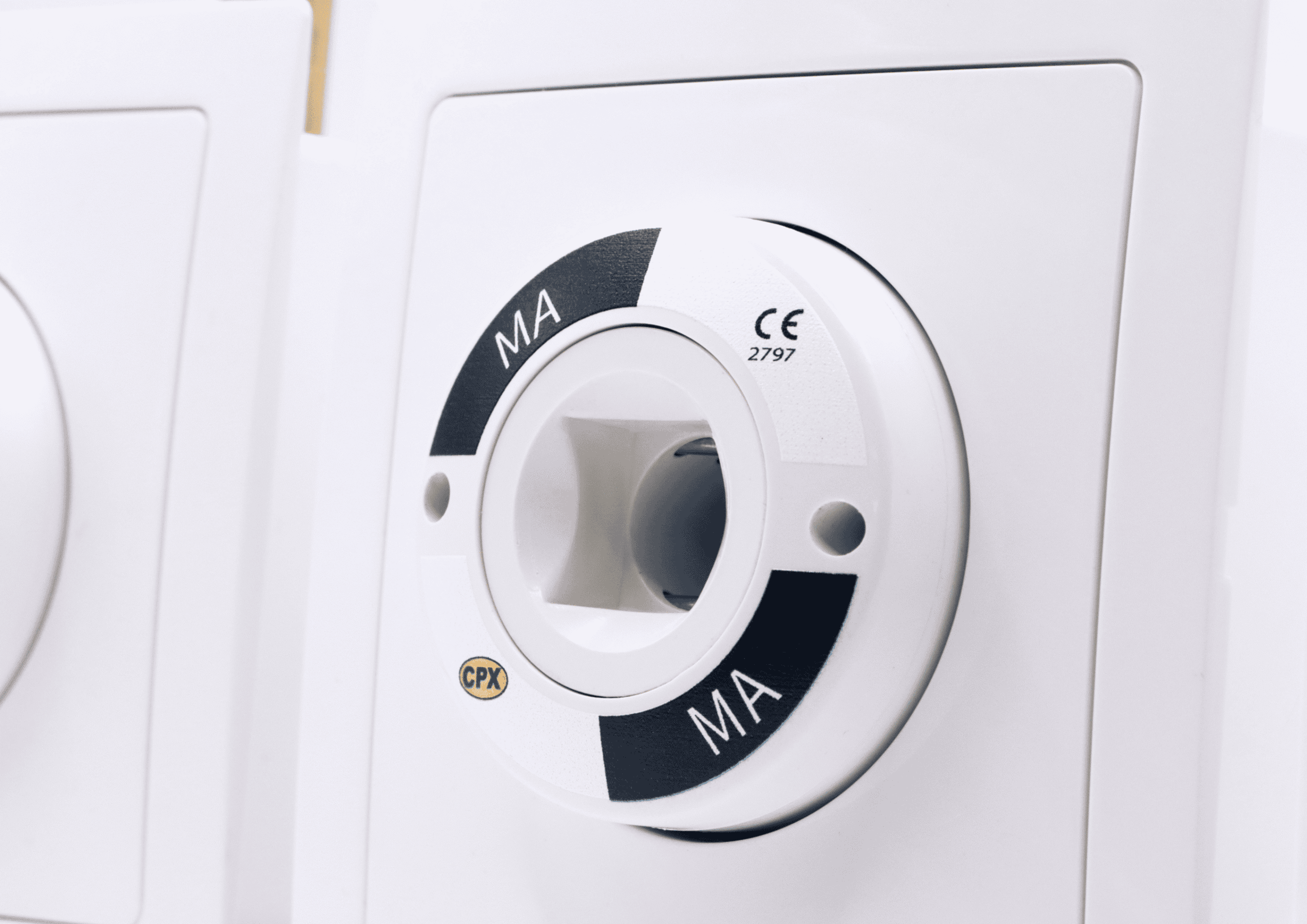

CPX DIN Medical Gas Outlets are manufactured and designed in our UK factory, with full metal construction, Gas Indexing as EN 13260-2, EN 9170, and Medical Gas Pipelines EN 7396, DIN 13260-2 Part 2: Dimensions and allocation of probes and gas-specific connection points for Terminal Units.

CPX DIN Gas Outlets are available for wall mounting (Flush or Surface), Bed Head trunking, and Pendant mounting.

Can be supplied with metal or plastic second fix.

Benefits & Features

• Available for Oxygen, Nitrous Oxide, Medical Air, CO₂, Surgical Air, and Vacuum (other gases available on request).
• Incorporating a 12mm copper stub pipe to EN 13348 to allow easy connection to the medical gas pipeline system, other options include NIST or DISS type fittings for pendants or Bed Head Units.
• Probe insertion design incorporates a parking position and full insert for 100% operation.
• Each outlet is supplied with Flush/Surface Box or Bed Head Plate mounting options.
• CE marked CE 2797 class 11b Medical Device.
• 3-year warranty

Product Codes

DIN Standard TU Product Codes
