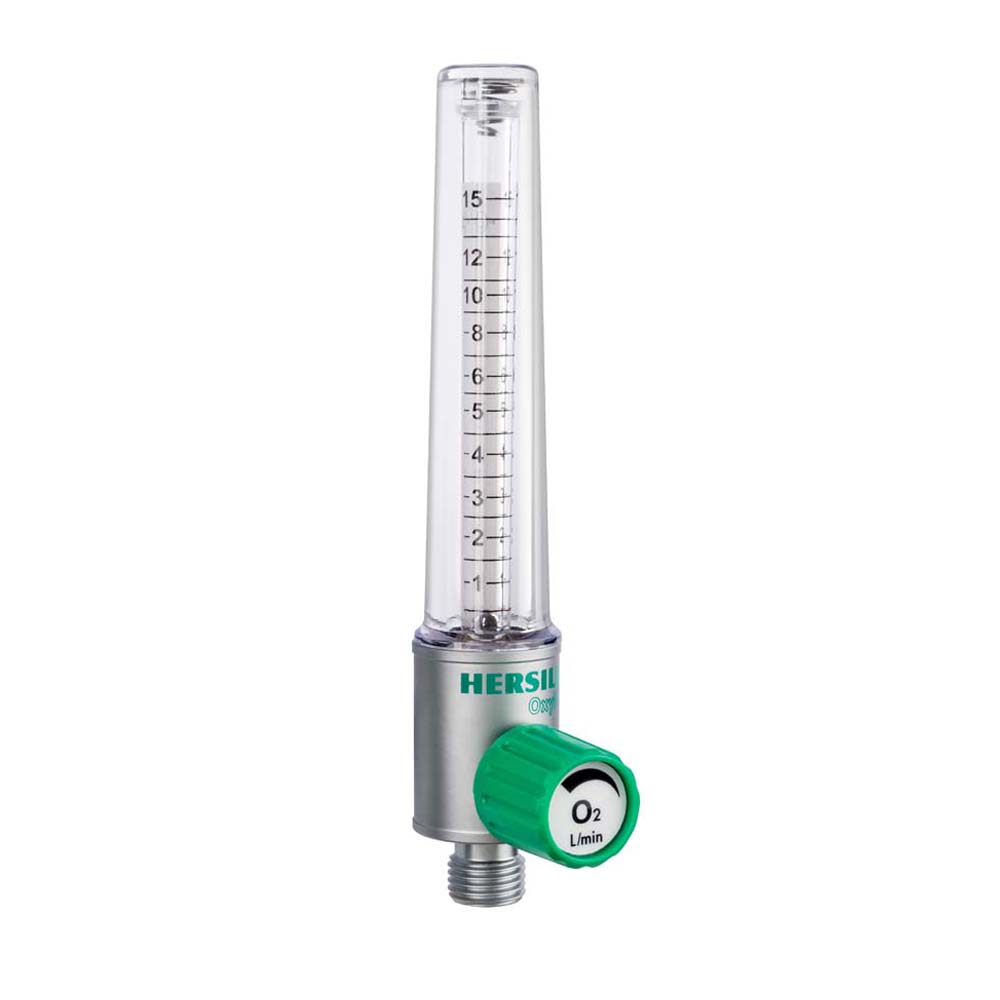

The Oxyll^®ball flowmeters are recommended for use in oxygen therapy, are lightweight, easy to use, effective and accurate.  They compensate the variations of pressure of the pipeline since they admit all the pressure in the line, maintain the pressure and supply the patient with the selected flow at atmospheric pressure through the mask, nasal catheter, nebulizer, humidifier, etc…

Description:

• Brass (matt chrome-plated) body.
• Polyamide regulation control knob.
• Polycarbonate outer and Inner tubes.
• Stainless-steel float.
• Brass (matt chrome-plated) DISS outlet.
• Latex-free.

Optional accessories:

• Dimensions (Width x Height) : 27 x 148 mm
• Weight : 164 g
• Gas options : O₂ and Air
• Fittings : BS, NF, DIN and SS (For other fittings, please consult) | Without fitting (Whitworth thread G1/8” F)
• Outlet fitting : DISS O₂ 9/16” – 18h UNF | DISS connector for O₂ and Air hose
• Inlet pressure : 4.5 bar – 65 psi – 450 kPa
• Accuracy : ±10%
• Scales from :  From 0 to 5 L/min From 0 to 15L/min From 0 to 30L/min
• Option : Rail coupling
