Australia Standard Gas Outlets
AUSTRALIA STANDARD GAS OUTLETS
-
Category
HEALTHCARE / OUTLETS
-
Manufacture
AMCAREMED MEDICAL GAS SYSTEMS
Medical gas outlets are used for medical gas system daily medical care and installed at gas systems delivery points(wardroom bed head units, medical pendants, and equipment wall) to provide the required medical gas.
AmcareMed medical gas outlets can provide 4 kinds of gas, including oxygen, medical air, vacuum, nitrous oxide. Different gases can be equipped with corresponding gas adapters.

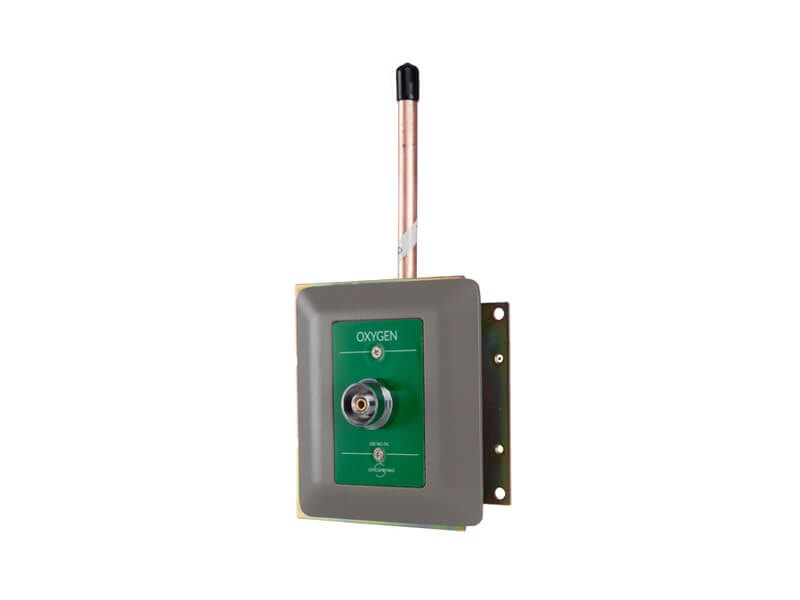

AmcareMed Australia gas outlets (CIG standard) are installed at medical gas systems delivery points. The base part made of brass alloy. Australia gas outlets include wall mount assembly type and rough-in assembly type. The wall mount type is using installed on the wall and the console type is using on the bed head unit. Provides NFPA full-color standard for easy gas identification. Only accept CIG standard gas specific adapters.
Specifications
- Completely with EN 737-1:1998
- Gas Type: O2, AIR, VAC, N2O, are available
- NFPA /ISO full color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors
- Insertion and extraction 10000 times without failure
- 100% tested for flow, leaks, and cleaned, can be used safely and securely
- The outlet with two stage one-way valve for easy maintenance without cutting gas supply
Technical Data
| Working pressure | 4-8bar |
| OD Size | 8mm, 10mm, 12mm K type copper pipeline |
| Weight | 0.84kg(metal cover), 0.6kg(plastic cover), 0.4kg(console type) |
| Structure | The outlet socket and the base adopt a combined structure, the same gas base can be used universally |
Model
| Gas Service | Wall mounting | Bedhead (console) mounting |
| OXYGEN | CIG-WAL-OXY | CIG-CON-OXY |
| MEDICAL AIR | CIG-WAL-MA | CIG-CON-MA |
| MEDVAC | CIG-WAL-VAC | CIG-CON-VAC |
| NITROUS OXIDE | CIG-WAL-N2O | CIG-CON-N2O |
