Medical Lockable Line Valve
MEDICAL LOCKABLE LINE VALVE
-
Category
MEDICAL GAS PIPELINE / COPPER TUBE, FITTINGS, AND ACCESSORIES
-
Manufacture
PRECISION UK LTD
The CPX Lockable Line Valve is manufactured in the UK under BS EN 13485 Medical Devices: Quality Management Systems and CE marked with the notified body British Standards Institute under Regulation (EU) 2017/745 (CE 2797).
They are designed to have a tight shut-off and blow-out-proof stem for protection against pressure surges.

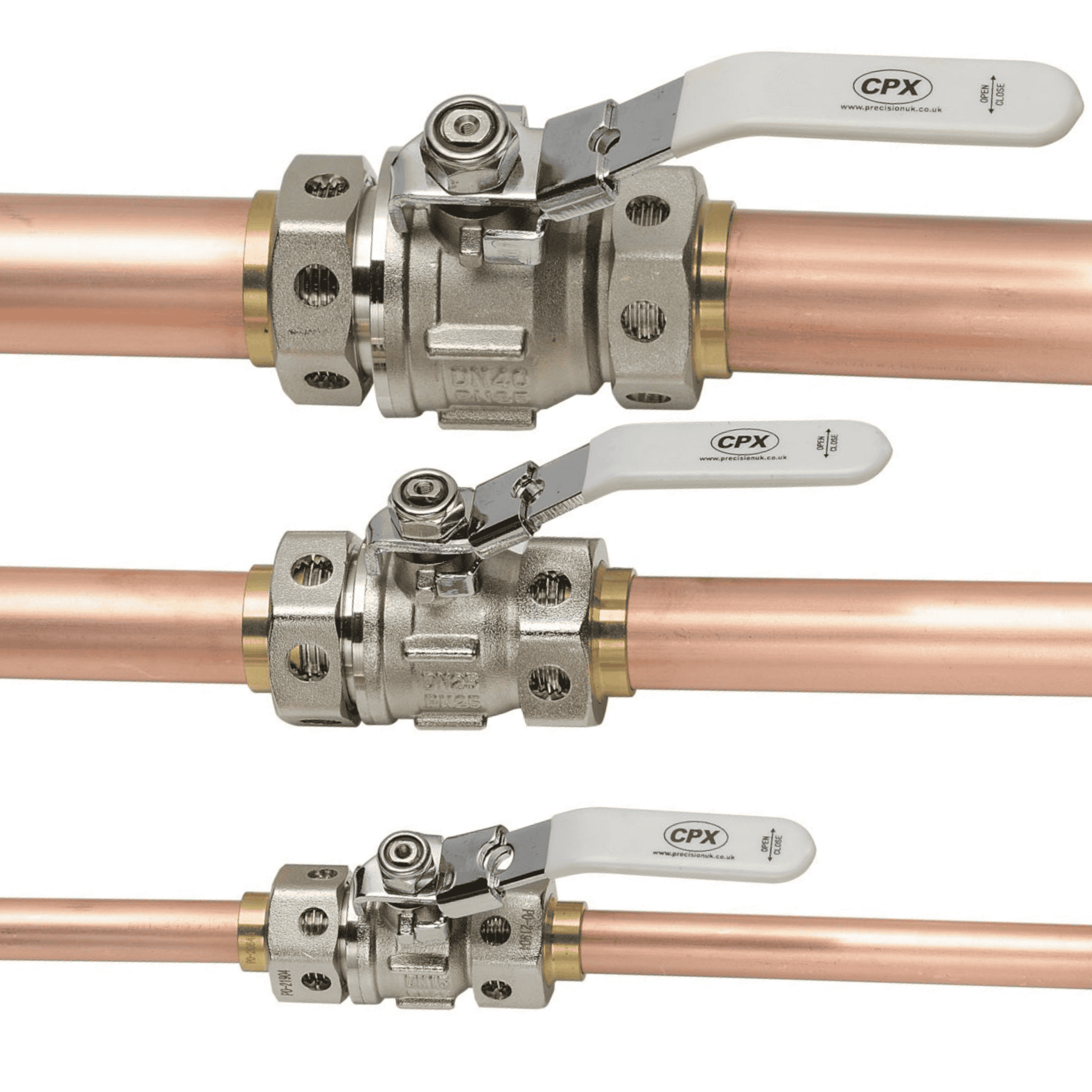

CPX Line Valves comprise of a 2-piece full-bore male threaded nickel plated brass ball valve, c/w chrome plated brass ball, blow-out proof stem, stem O-ring, Teflon® ball seals, and flat face copper stub pipe assemblies.
The copper stub pipe assemblies are manufactured from CPX Medical Gas Copper Tube, compliant with BS EN 13348, and are factory-soldered to brass flat face seal flanges, chemically cleaned, and degreased.
The copper pipe stubs are of sufficient length to enable brazing directly to the MPGS, utilising fluxless brazing to WKO (82) 1. Flat face housing incorporates Nitrile® or Viton® O-ring seals, ensuring 100% gas-tight connections.
