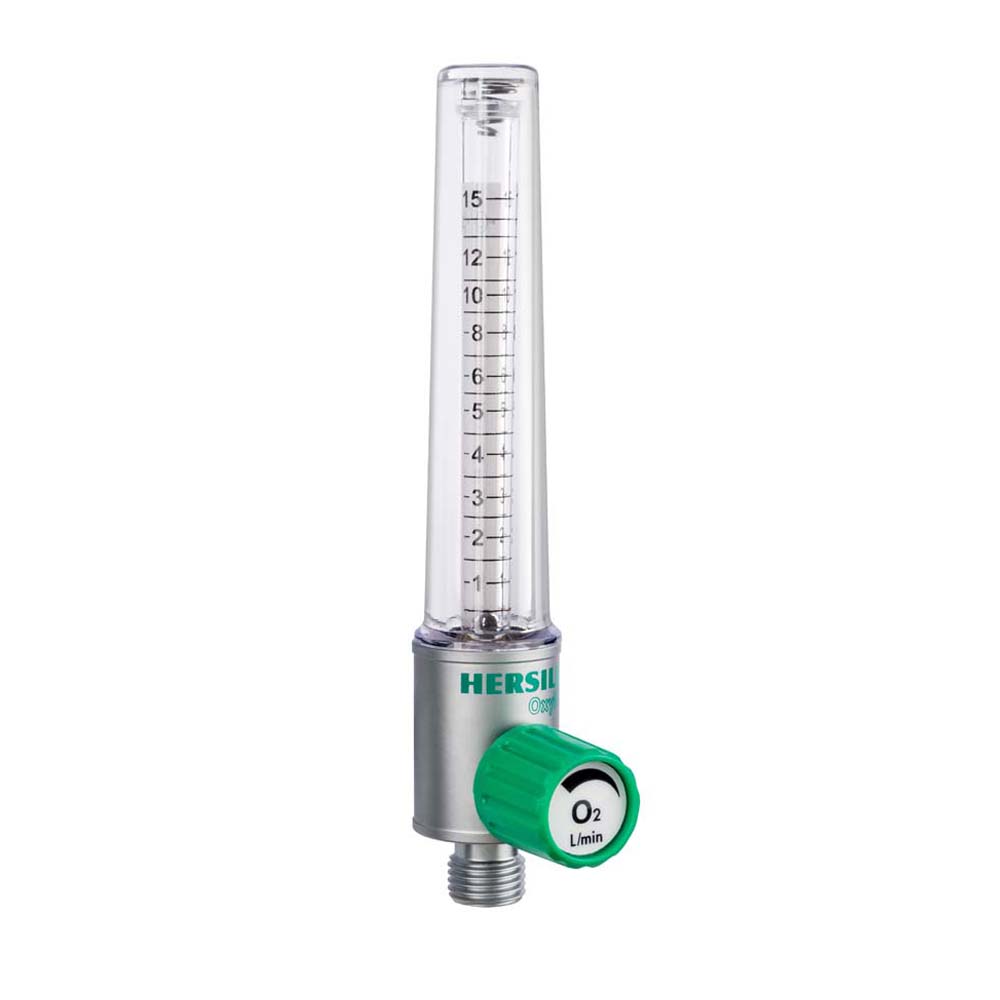

Oxyll® dual ball flowmeters  are recommended for use in oxygen therapy. They are lightweight, easy to use, efficient, and accurate. They compensate for variations in line pressure by accepting the full line pressure, maintaining pressure, and delivering the selected flow rate to the patient at atmospheric pressure, through a mask, nasal cannula, nebulizer, humidifier, etc.

Description:

• Matt chrome-plated brass body.
• Polyamide regulation control.
• Outer and inner tube in polycarbonate.
• Stainless steel ball.
• DISS outlet in matt chrome-plated brass.
• Latex free.

Optional accessories:

• Dimensions (Width x Height) : 135 x 148 mm
• Weight : 504 g
• Gas options : O₂ and Air
• Fittings : BS, NF, DIN and SS (Other connections consult) | No connection (Whitworth thread  G1/8” F)
• Outlet fitting : DISS O 2  9/16” – 18h UNF | DISS connector for tube O 2 and Air
• Inlet pressure : 4.5 bar – 65 psi – 450 kPa
• Accuracy : ±10%
• Scales from :  From 0 to 5 L/min | 0 to 15L/min | 0 to 30L/min
• Option : Rail coupling
